Vapers Guide to Voltage, Watts and Ohms

baz
Feb 25, 2016
6 min read

Many people tell me that they are still very confused about voltage, watts and ohms when it comes to vaping so I thought i would write a few words about the subject. However it is possible to enjoy vaping without this knowledge, but some people just like to know!

Before we get started, it’s worth noting if you are starting off with variable voltage, and even with different resistance atomisers, you can get a very good vaping experience without a deep understanding of the science behind it.

At its simplest level, it’s simply a matter of adjusting the voltage of the battery until you get the vapour, flavour and throat hit you desire. You can also experiment with using different resistance atomisers and combining them with different voltages.

Some people want to know more, though, in order to get the perfect vaping experience. If you’re one of those, this post is for you.

What Are Ohms?

An ohm is a unit of resistance. Essentially, the lower the resistance of your atomiser, the more electricity will flow through it. Increase the amount of resistance and less electricity will flow through. So when you use a lower resistance atomiser, and more electricity flows through, you will find the following:

more heat is generated at the coil
more vapour is generated
you may experience a more intense flavour (however, flavours perform differently with different resistance atomisers)
vapour will be warmer

Depending on your tastes, the above may all be positives! On the negative side:

your battery will be drained more quickly
battery life may be reduced
e-juice will be used more quickly
atomiser life will be reduced (very low ohm atomisers may only last 2-3 days)
you are more likely to experience a dry hit

Obviously, when you use a high resistance atomiser the opposite will happen:

less electricity flow
creating a reduced atomiser heat
a reduced amount of vaper
cooler vaper
and you may experience a less intense flavour

But on the plus side:

battery life will be longer
less ejuice will be used
you will be less likely to get a dry hit

Variable Voltage E-Cigs Explained

The resistance of your atomiser is not the only thing which controls the amount of vapour, flavour and throat hit that are produced. It also depends on the amount of power flowing through your atomiser. There are two common types of ecig batteries which allow different amounts of power to flow through your atomiser, which are known as variable voltage (such as the Vision Spinner 2 or the Aspire CF battery) and variable wattage. As we’ve seen, you can get a more intense experience by lowering the resistance of your atomiser. You can also do the same by increasing the amount of power flowing through your e-cigarette. That may sound complicated, but usually there’s nothing more to it than pressing an up/down button or rotating a dial. But what if you want more vapour again? Then you can combine a low resistance atomiser with a higher voltage to get even more vapour. But this does come with its own problems – you are far more likely to burn through atomisers or get a dry hit, and atomiser life will be dramatically reduced.

Variable Voltage vs Variable Wattage Devices

Essentially, the difference between variable voltage and variable wattage is a bit like the difference between an automatic and a manual car. With a variable voltage device you manually control the amount of power (voltage) going through your device.

The amount of energy that is actually output will depend on how the resistance of your atomiser interacts with that power flowing through it.

With a variable wattage device, however, rather than telling the device how much power you want to flow through your atomiser, you tell it how much power (wattage) you want it to output.

The variable wattage device will then automatically adjust the power going through the atomiser (the voltage) to produce the power output you need (the wattage).

To put it another way, watts is essentially how much power the e-cig produces and voltage is how much power is put through the device.

So, as you increase the wattage the voltage also increases and vice versa. Voltage is not the only factor which affects wattage – you also need to take into account the resistance of the coils. Lower resistance coils produce more flavour, vapour and heat at a lower voltage than higher ohm coils because they use more watts.

For example, if you have a 1.8ohm coil running on 3.7 volts you’ll get an output of around 7.3 watts – a decent vape.

However, if you change the coil to a higher resistance of 2.8ohms you will notice a considerable decrease in flavour, vapour production and heat, as the wattage will be lower (around 4.4 watts) and you will need to increase the voltage to increase the wattage and thus get a better vape.

Because lower resistance coils use more wattage, they tend to generate more heat and can burn out quicker than a higher resistance coil would.

What Does mAh in E-Cig Batteries Mean?

You’ve probably seen mAh used to describe electronic cigarette batteries. mAh is important because it measures how long a battery lasts. Going back to my car analogy, if voltage is the fuel then mAh is the size of the fuel tank – the bigger the tank the longer the car will go before it needs refuelling. mAh stands for Milliamps per hour, but I'll go more into that below.

What Is Sub Ohm Vaping?

So, we’ve seen that by lowering the resistance and increasing the voltage we get more vapour, more throat hit and sometimes more flavour. Sub-ohming takes this to extremes by vaping at a resistance of less than 1 ohm. While this can produce massive amounts of vapour, it also puts stress on both the battery and the coil in your clearomiser. It’s often done on a mechanical mod, which has no electrical safety switch and may increase the risk of an exploding battery if not used correctly. Until recently, sub-ohm vaping has been reserved for experienced vapers who want to push the boundaries with rebuildable atomisers. The new Kanger tech subox kits and Aspire sub tanks etc are part of a new breed of devices that allow you to enjoy sub ohm vaping with the safety, convenience and serviceability of regular tank devices.

Advanced Explanation of Voltage, Watts and Ohms for Vapers

Electronic cigarettes are incredibly simple circuits that contain a battery, a switch and a heating coil. The circuit is effectively a controlled short, with the power being output from the battery being used to create heat.

mAh

A milliampere hour (mAh) is 1000th of an ampere hour (Ah). Both are used as a measure of battery capacity, a higher mAh rating means more capacity. mAh only measures capacity and should not be confused with power.

Amps

The Amp (short for ampere) is a measure of current. An ampere is defined as 6.241*10 18 electrons (1 Coulomb) per second passing through a point in a circuit.

Voltage

Voltage is the amount of potential energy between two points in a circuit. One point will have more charge than the other. This difference in electrical charge between the two points is called voltage.

Watts

Watt is a measure of the amount of power consumed by an electrical device.

Ohms Law

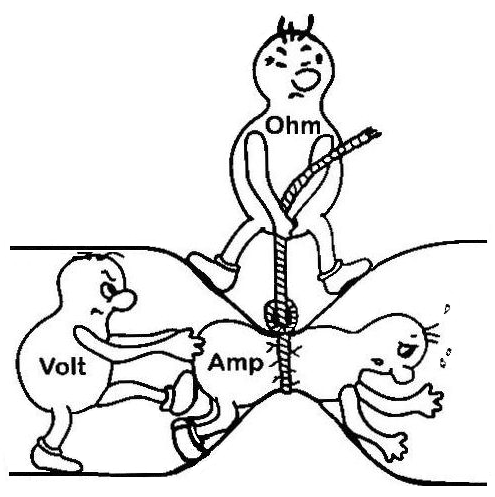

Image above from sengpielaudio.com Ohms law refers to the calculations used to show the relationship between voltage, current and resistance. There are three of them, which we’ve listed below.

V = Voltage measures in volts
I = Current measures in amperes (Amps)
R = Resistance measured in ohms

By knowing any two of the three values, you can calculate the third using ohms law; V = I x R (Voltage = Current Multiplied by Resistance) R = V/I (Resistance = Voltage divided by Current) I – V/R (Current =Voltage Divided by Resistance) So, if you are using a 0.5ohm coil on a battery that gives 4.2 volts, you use the following sum to work out how many amps the circuit is draining from the battery. I = 4.2/0.5 = 8.4A This is useful for vapers to know, particularly if they are making their own coils. The sum above is the most useful, as you should not be vaping on a coil when you do not know its resistance, or on a battery with unknown voltage output.

I hope this helps. Happy Vaping! :-)
